SMPS based Integrated Power Supply for Level Crossing Gate – & Intermediate Block Working / Intermediate Relay Hut

Features

Compact, easy to install, as all 11 modules are integrated. Input and output connections are on the front side.
Supports N+1 configuration with active current sharing for optimum redundancy and high availability.
Hot Swapping of modules for replacement of faulty units without disruption in output voltage.
Short circuit, over load and over voltage protection.
Built in low drop ORing diode to prevent back feed.
Built in diagnostics and health monitor with potential free Contact output for remote monitoring.
Digital meter for output voltage and current.
Existing 48V battery bank can be divided in to 2 sets of 24V battery bank, which ensures redundancy in battery bank

SMPS Based Telecom Integrated Power Supply System for Station (TIPSS)

More on AC/DC Converter Subsystem

The Converter output voltages are normally preset (factory set) at default values of 28V for Battery Charger and Solar Charger, 110VAC For Inverter and 24V and 110VDC for DC-DC Converter. Maximum output current ratings of each units are applicable at these higher preset voltages. For voltages above nominal values, the maximum power rating is the limiting condition. Overload condition is prevented by current limit and thermal shutdown against excessive power demands.

SOLAR CHARGE CONTROLLER

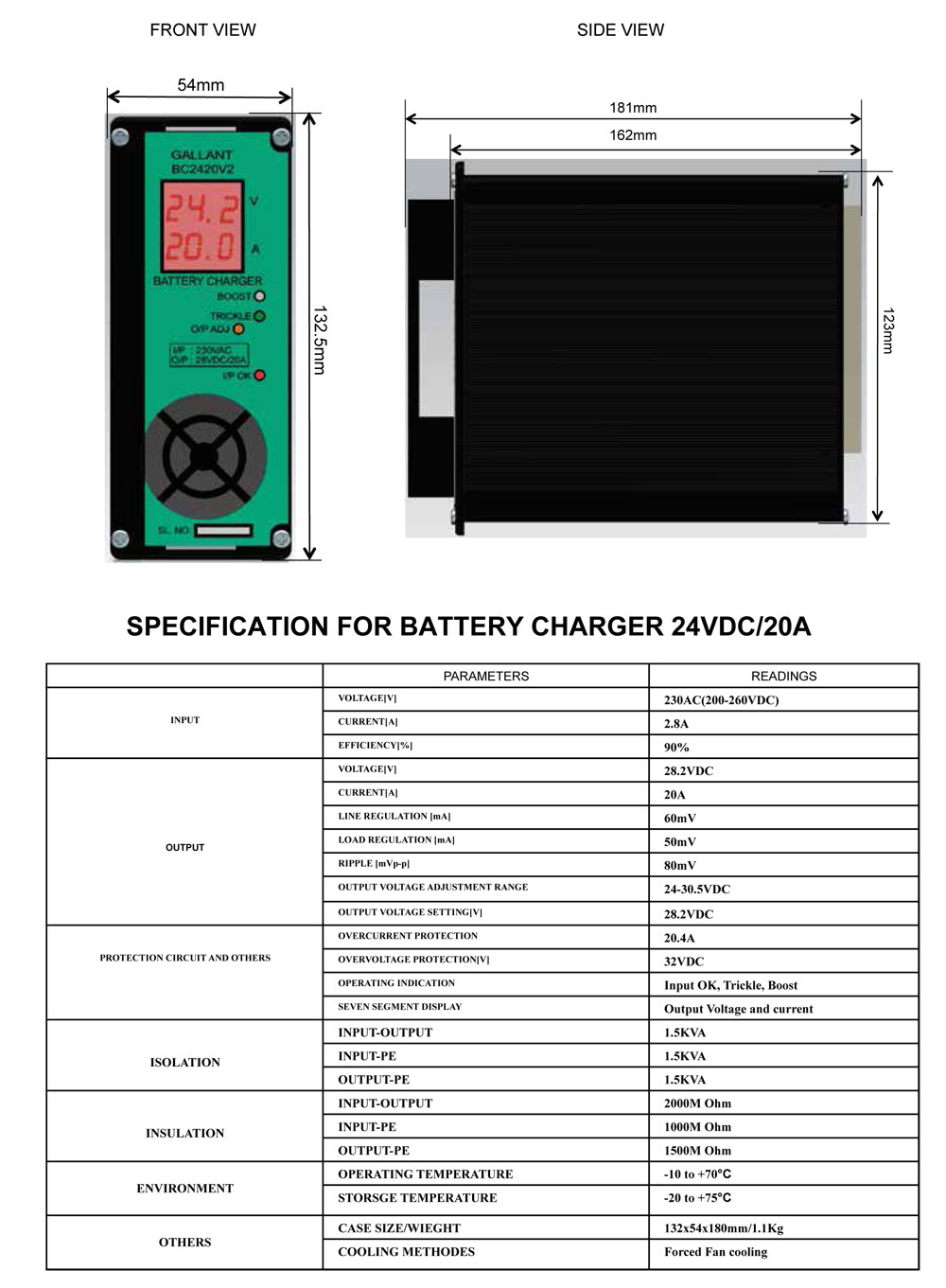

BATTERY CHARGER 24VDC/20A

INVERTER 110VAC/500W

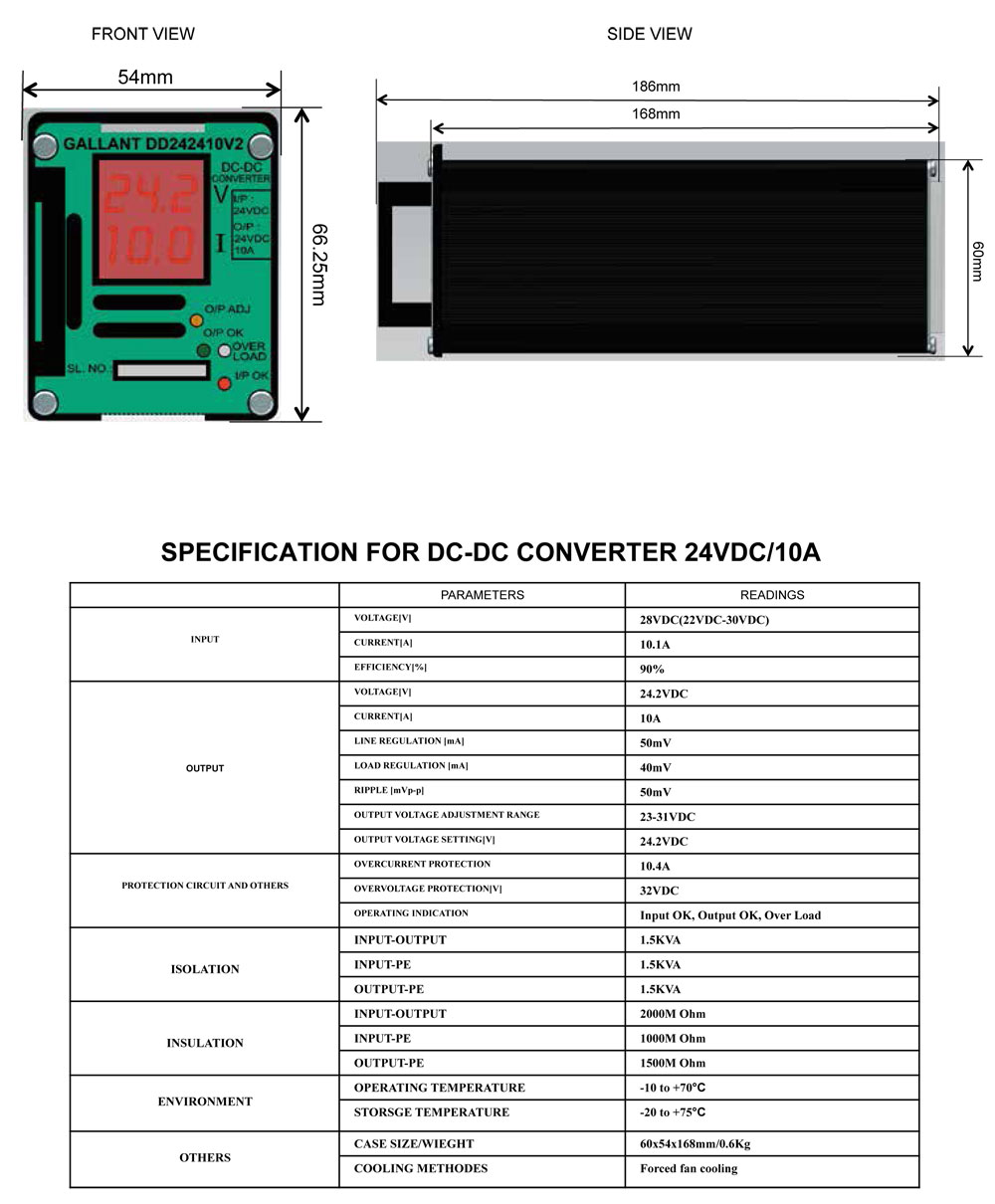

DC-DC CONVERTER 24VDC/10A

HEALTH MONITOR WITH GSM
